Technical Drawing

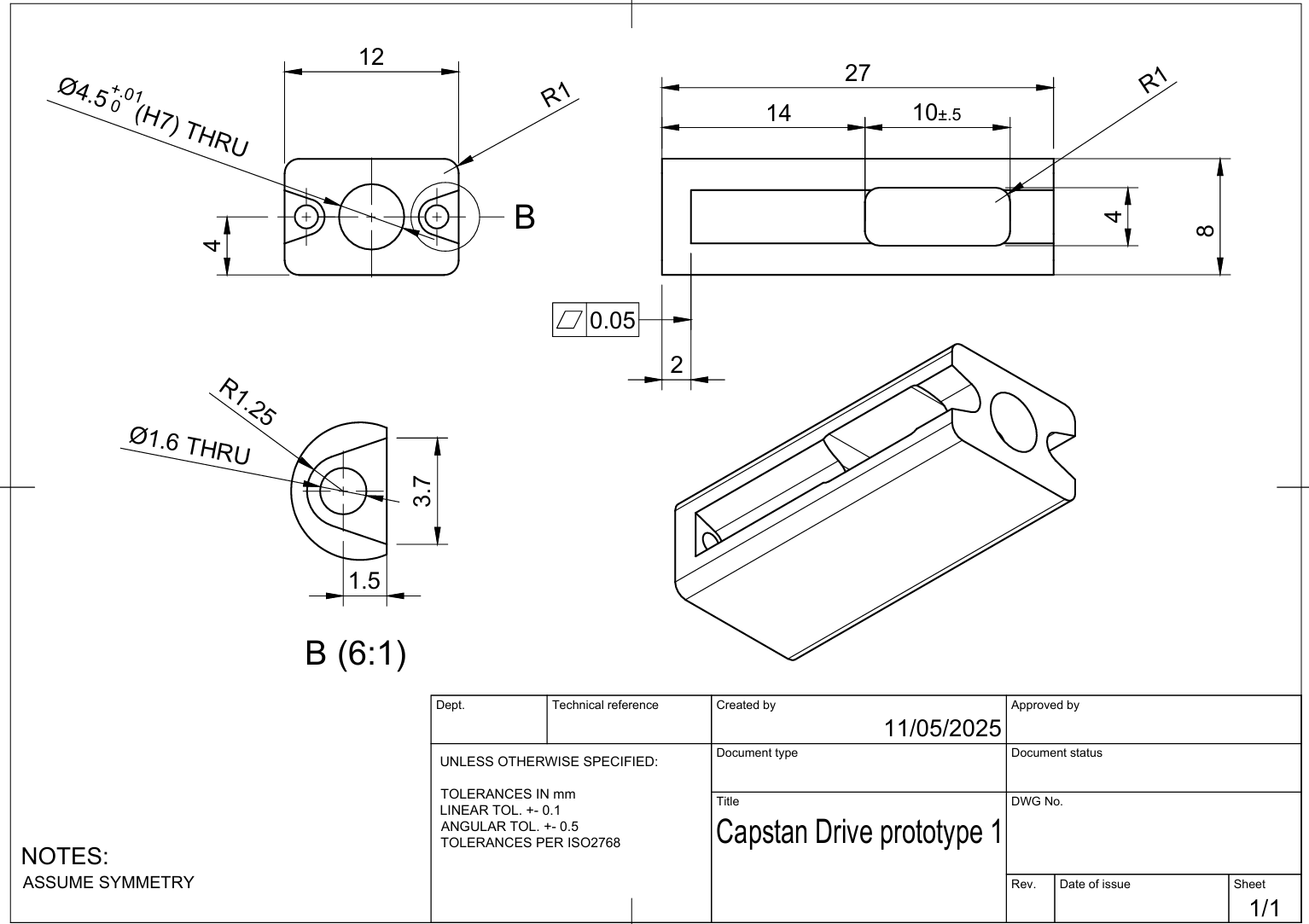

Technical engineering drawing of a Capstan Drive prototype, showing multiple views with detailed dimensions, circles indicating holes, and annotations including radius, diameter, and tolerances.

Orthogonal drawings used for detailed part/assembly specification and manufacturing. These go beyond conceptualising ideas and drill down to the technical details of a product, ultimately specifying Form, Fit, Function (FFF)

  • Part, assembly and general arrangement drawings

  • BS8888 conformity

  • Geometric Dimensioning & Tolerancing, if required

  • Bill Of Materials (BOM) included for reference, if required
